Running Track Paver Machine | 2500mm Width, 500m²/h
The CZ-TPJ-2.5 Running Track Paver Machine is designed for paving rubber elastic layers on synthetic running tracks, athletic tracks, and sports surfaces. It integrates variable-frequency stepless speed control, electric hydraulic lifting, and digital temperature control to support smooth and continuous mechanical paving. With a 2500mm paving width, adjustable speed of 0.8–6 m/min, and paving capacity of up to 500m²/h, the machine is suited to efficient installation of running tracks and large sports surfaces.
| Technical Parameter |
Specification |
| Product Model |
CZ-TPJ-2.5 |
| Paving Width |
2500 mm |
| Paving Speed |
0.8–6 m/min |
| Paving Capacity |
500 m²/h |
| Power |
8 kW |
| Hydraulic Pressure |
8 MPa |
| Heating Plate Temperature |
90°C |
| Machine Weight |
900 kg |
| Overall Dimensions |
3000 × 1800 × 720 mm |
| Speed Control |
Variable-Frequency Stepless Speed Control |
| Lifting System |
Electric Hydraulic Lifting |
| Temperature Control |
Digital Automatic Temperature Control |
- Synthetic Running Track Paving
- Rubber Sports Surface Paving
2500mm Wide Paving
The 2500mm paving width supports continuous installation of rubber elastic layers on running tracks and large sports surfaces.
Adjustable Paving Speed
The machine operates at 0.8–6m/min, allowing the paving speed to be adjusted according to project conditions.
Electric Hydraulic Lifting
The hydraulic lifting system allows the machine's working position to be adjusted during installation.

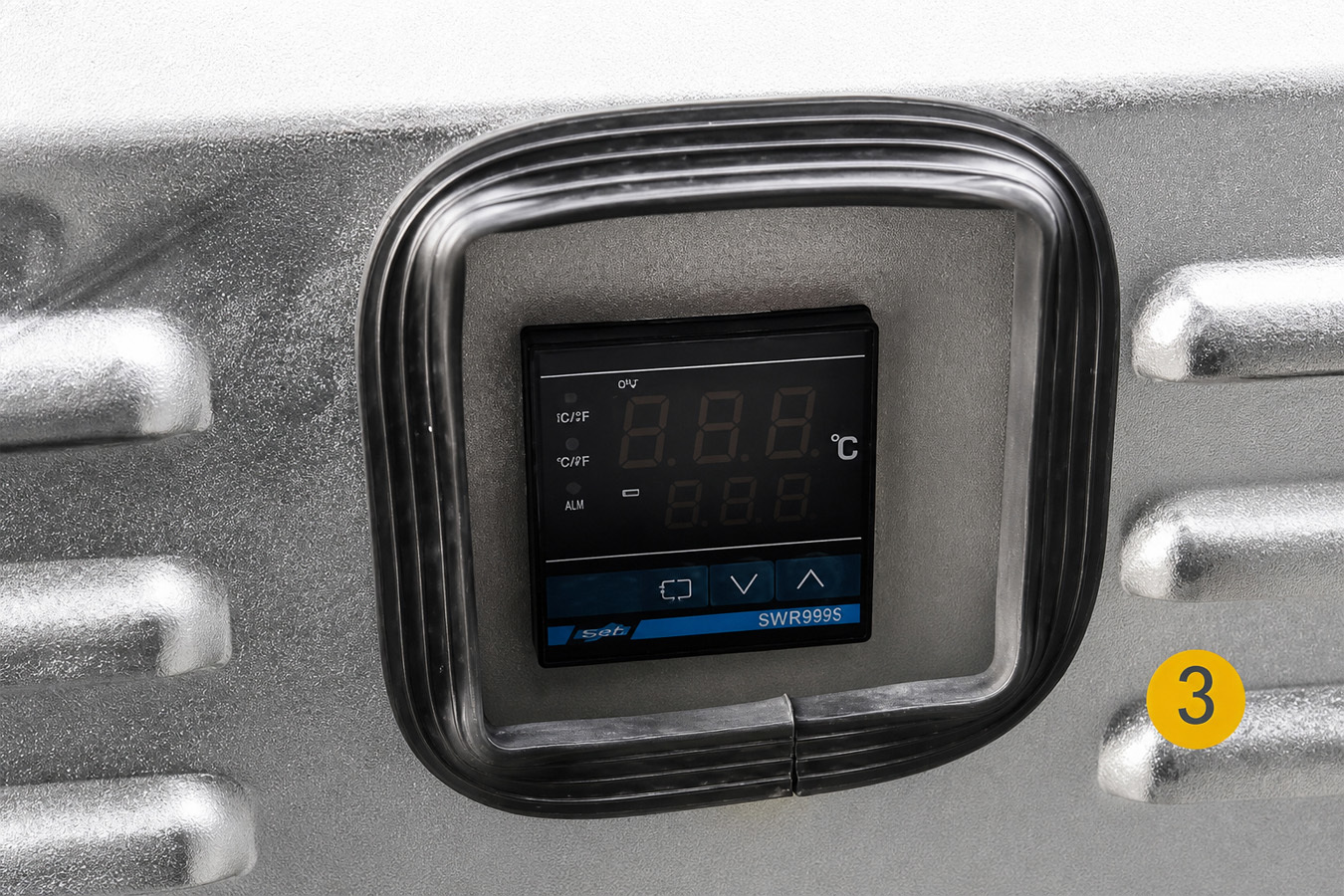

Digital Temperature Control
The heating plate has a set temperature of 90°C, supported by a digital temperature control system.
Designed for Rubber Sports Surfaces
The machine is specifically positioned for synthetic running tracks and rubber elastic sports surfaces rather than conventional road paving.
|
|
Running Track Paver Machine | 2500mm Width, 500m²/h Images
|
